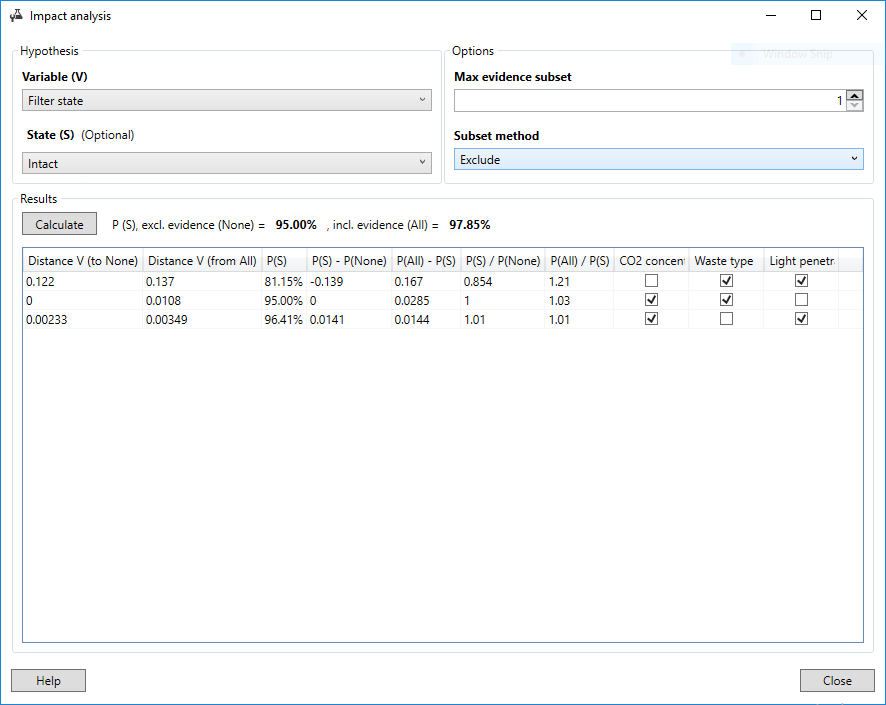

Impact analysis
Since version 7.18
Impact analysis evaluates the effect of different subsets of evidence on a target variable and/or state. The target is known as the Hypothesis.
Impact analysis can be used to:
- See which individual pieces of evidence change the target the most
- See which individual pieces of evidence, when excluded, change the target the most
- See which subsets of evidence which, when included or excluded, change the target the most.
Support
| Variable type | Hypothesis | Evidence |
|---|---|---|
| Discrete | Yes | Yes |
| Continuous | Yes | Yes |
| Hybrid | Yes | Yes |
NOTE
We use the term None to refer to the case when none of the evidence (being analyzed) is included. We use the term All to refer to the case when all of the evidence (being analyzed) is included.
Subsets
The subsets to consider are generated by looking at all possible combinations of evidence, subject to the following constraints.
Max evidence subset size
The number of items of evidence in each subset.
Subset method
When Subset method is set to Include, evidence on variables in the subset is included, but not other evidence variables (being analyzed).
When Subset method is set to Exclude, all evidence is used, except for those in the subset.
Statistics
For each evidence subset, impact analysis calculates a number of statistics:
Distance V (from None)
The Kullback-Leibler divergence D(P||Q) from the hypothesis query without evidence (Q) to the current combination (P).
This tells us how different V is between the current subset evidence and no evidence.
Kullback-Leibler divergence (to All)
The Kullback-Leibler divergence D(P||Q) from the hypothesis query with the current subset of evidence (Q) to all evidence (P).
This tells us how different V is between all evidence and the current subset evidence.
P(S)
When a discrete hypothesis state is included, this reports the probability of that state given the current evidence subset.
P(S) - P(None)
When a discrete hypothesis state is included, this reports the difference between the probability of that state given the current evidence subset and no evidence.
P(All) - P(S)
When a discrete hypothesis state is included, this reports the difference between the probability of that state given All the evidence and the current evidence subset.
P(S) / P(None)
When a discrete hypothesis state is included, this reports the ratio between the probability of that state given the current evidence subset and no evidence.
NOTE
This is also known as the Normalized Likelihood in impact analysis.
P(All) / P(S)
When a discrete hypothesis state is included, this reports the ratio between the probability of that state given All the evidence and the current evidence subset.
